FM-PP30 Pipe Pile System
The FM-PP30 Pipe Pile System (FMPP30 pipe pile) is a deep foundation solution engineered for long-term structural stability in challenging soil conditions. This high-capacity FMPP30 pipe pile system is designed for residential, commercial, and bridge applications, delivering superior compression, uplift, and lateral capacity, corrosion resistance, and settlement control compared to traditional timber or concrete piles.
Florida’s Longest-Running Foundation Repair & Structural Engineering Firm
For more than 25 years, Foundation Masters has designed, engineered, and installed foundation repair, underpinning, deep foundation, waterproofing, and structural stabilization systems. As Florida’s longest-running foundation repair company under continuous ownership, Foundation Masters continues to provide engineered solutions backed by decades of field experience, documented project performance, and proprietary foundation systems developed specifically for Florida conditions.
Engineer Design Reference
Select a pile system to review specifications, installation criteria, and engineered acceptance guidance. Use this index to compare options and keep design decisions consistent across projects.
Engineering Research & Technical Publications
Deep foundation performance depends on far more than pile capacity alone. Soil conditions, refusal criteria, structural loads, groundwater, corrosion protection, and long-term building movement all influence how a pile system performs throughout its service life.
The Foundation Masters Research Center contains engineering research, technical articles, high-rise building investigations, Florida geology studies, pile system comparisons, and field case studies developed to help engineers, contractors, property owners, and associations better understand modern deep foundation technology.

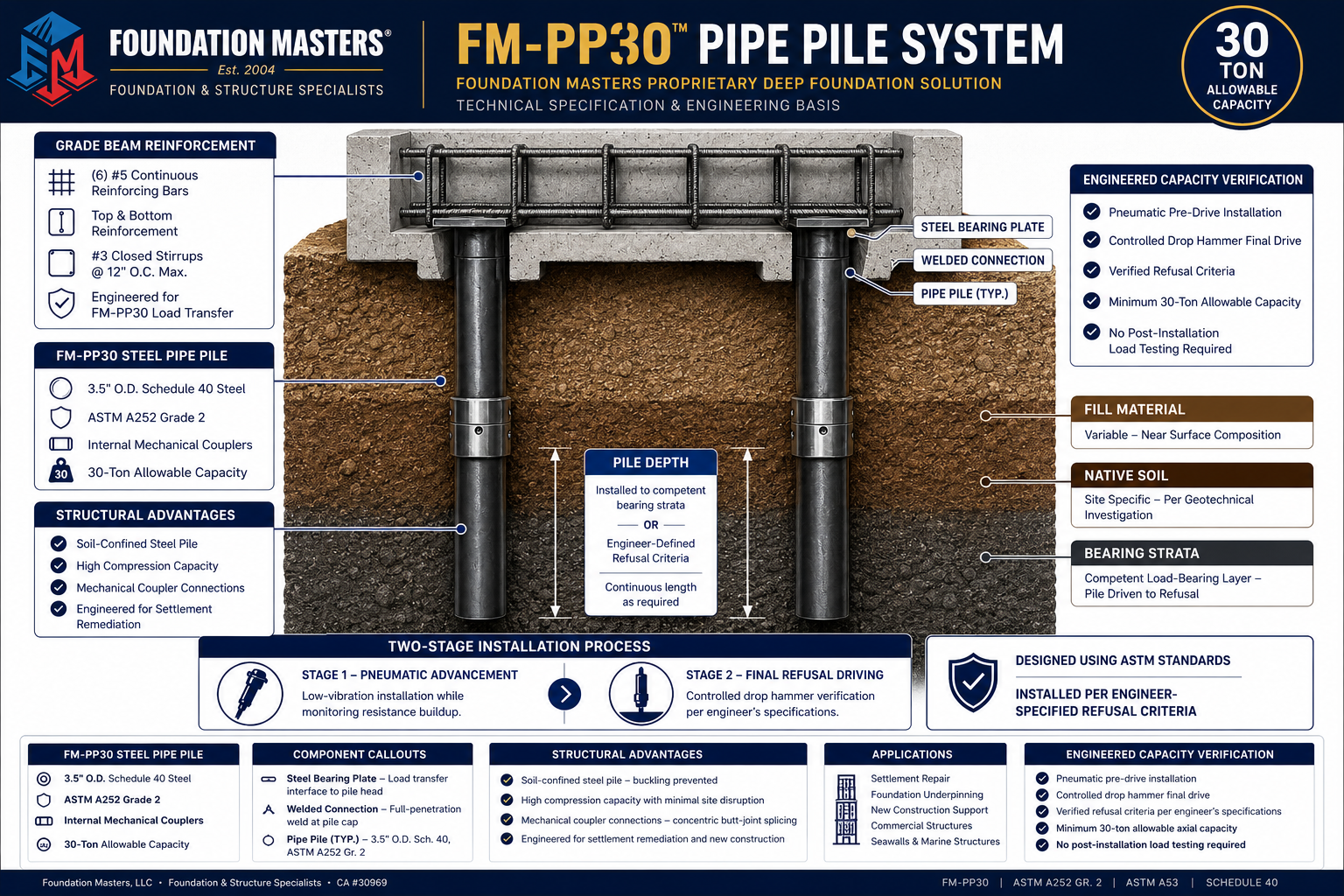

FMPP30 Pipe Pile System Overview
Constructed from 3½″ Schedule 40 steel with a 12″ × 12″ × ½″ A36 top plate, FM-PP30 is ideal for new construction, underpinning, and structural remediation projects. This FMPP30 pipe pile system delivers consistent load performance through verified bearing resistance and precise installation methods.
Applications
- New construction foundations; residential & light commercial
- Bridge construction (FM-H20 Bridge System)
- Seawalls, retaining walls, bulkheads
- Pool decks and structural slabs
- Foundation underpinning and retrofits

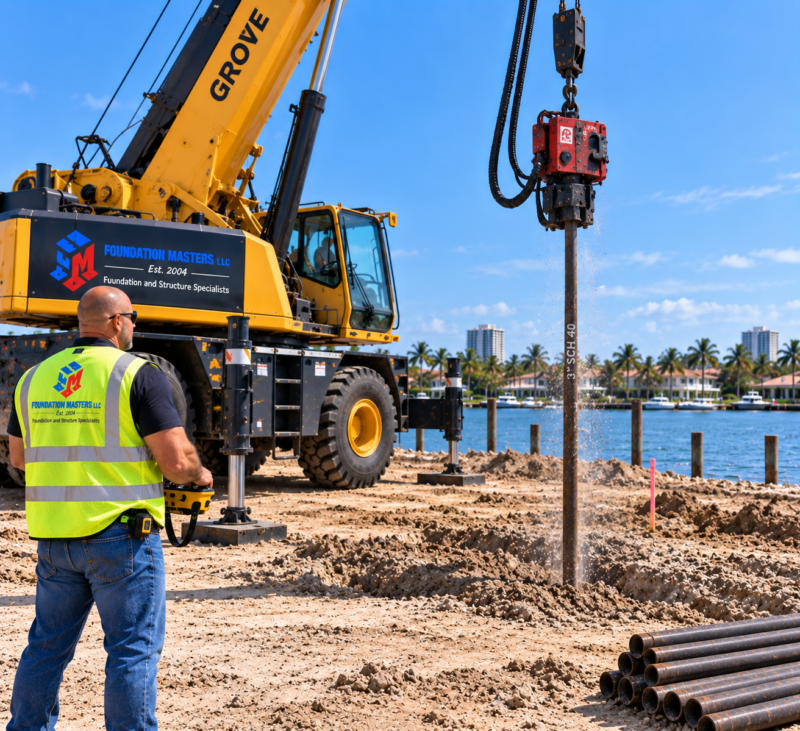

Installation Overview
Driven using a pneumatic hammer or vibratory hammer. Optional vibration monitoring can be included in the contract. Piles may be installed vertically or on batter (inclined) for lateral/uplift resistance. Heads are cut to grade and welded to the 12″ × 12″ × ½″ A36 plate for integration into beams, slabs, or pile caps.
Florida Deep Foundation Use
This FMPP30 pipe pile system is commonly used in Florida for deep foundation applications requiring high load capacity, long-term durability, and minimal settlement in variable soil conditions.

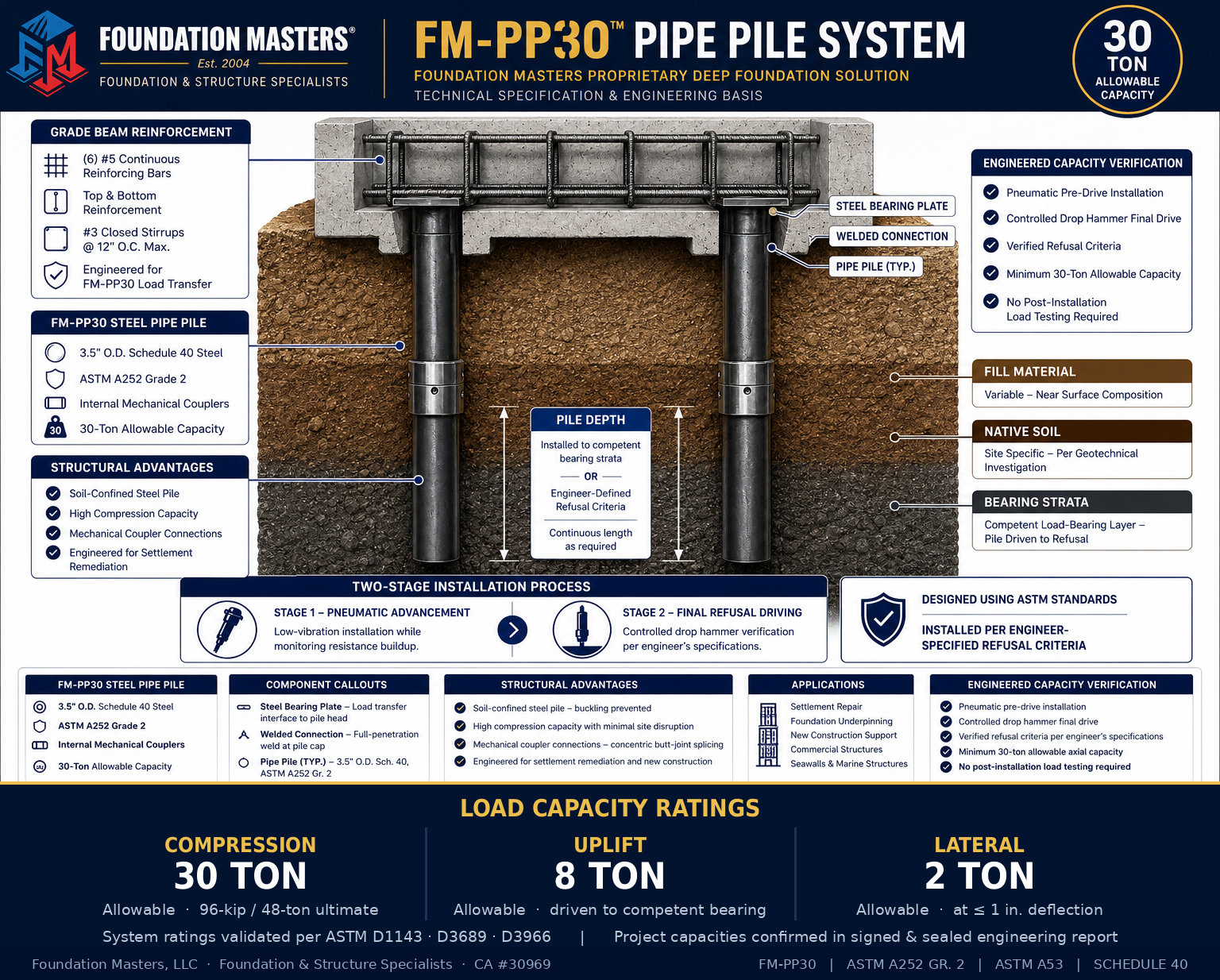

FM-PP30 Load Capacities
Every production pile is verified in place by the driving refusal criterion set for the project — no separate per-pile load test is required. System ratings are validated by load testing (ASTM D1143 compression, D3689 tension, D3966 lateral).
Project-specific allowable compression, uplift, and lateral capacities are confirmed in a signed and sealed engineering report for the driven piles.
FMPP30 Pipe Pile Batter Specifications

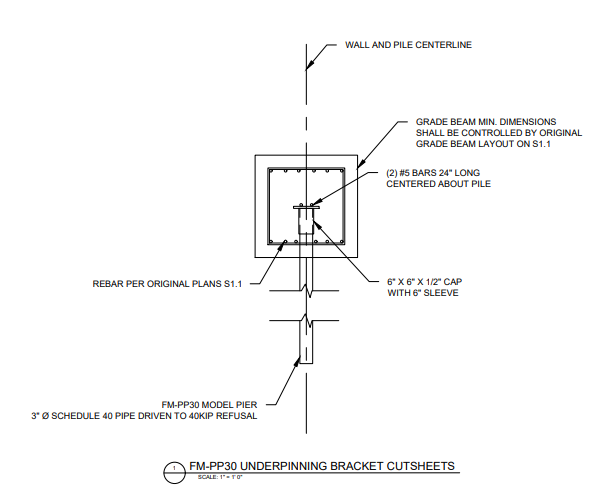

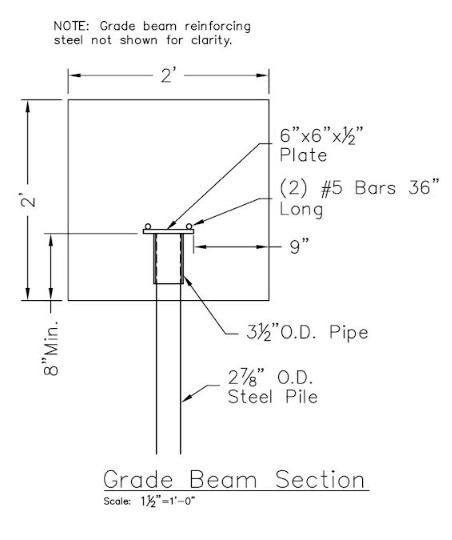

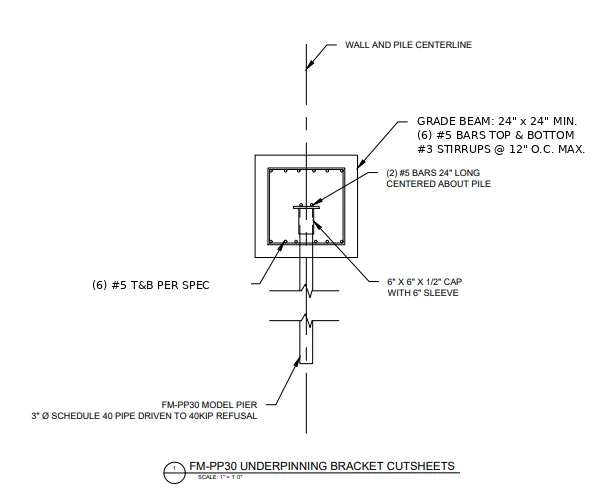

FM-PP30 Engineering Detail Drawing
Engineered FM-PP30 pipe pile detail illustrating the pile shaft, welded top plate, embedment configuration, and structural integration requirements used for foundation, bridge, seawall, and heavy-load applications.
FMPP30 Pipe Pile Engineering Notes
- Working loads incorporate an appropriate factor of safety against the tested structural capacity of 96 kips (48 tons).
- Design parameters may be modified for site-specific soils and structural demands.
- All welds conform to AWS D1.1 Structural Welding Code – Steel.
- Piles may be designed in groups and with combined vertical + batter configurations.
- Optional load testing and vibration monitoring available upon request.
- Material reference for pipe properties may be reviewed under the ASTM A53 steel pipe specification.

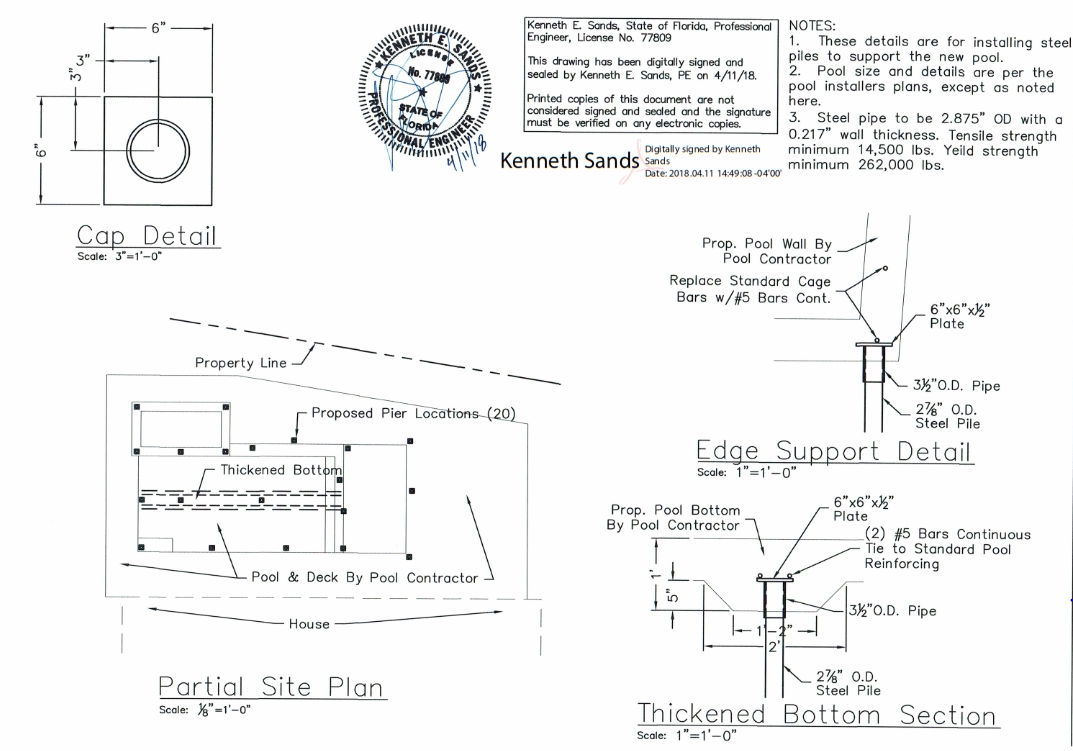

Drawings & Field Documentation
Full-frame technical images (no cropping) used for installation reference and design coordination.
FM-PP30 vs. Timber Pile Systems
A side-by-side comparison of typical pressure-treated timber piles and the FM-PP30 steel pipe pile system used in FM-H20 bridge and heavy-duty foundations.
Compared to timber systems, the FMPP30 pipe pile provides significantly higher load capacity, greater stiffness, and much longer-term durability. Ideal for FM-H20 bridge applications and coastal or marine environments.
*Values shown are typical/representative and may vary by site conditions. Always consult project-specific engineering.
