FMPP100 Pipe Pile System
The FMPP100 Pipe Pile System is a high-capacity driven steel pile engineered for major axial loading, verified refusal criteria, and long-term settlement control in demanding structural applications. The FMPP100 Pipe Pile System is designed for projects where deep foundation performance, installation verification, and deterministic load capacity are critical.
Florida’s Longest-Running Foundation Repair & Structural Engineering Firm
For more than 25 years, Foundation Masters has designed, engineered, and installed foundation repair, underpinning, deep foundation, waterproofing, and structural stabilization systems. As Florida’s longest-running foundation repair company under continuous ownership, Foundation Masters continues to provide engineered solutions backed by decades of field experience, documented project performance, and proprietary foundation systems developed specifically for Florida conditions.
Engineer Design Reference
Select a pile system to review specifications, installation criteria, and engineered acceptance guidance. Use this index to compare options and keep design decisions consistent across projects.
FMPP100 Pipe Pile System Material Specifications
Steel Pipe Pile
- 8″ O.D. Schedule 40 steel pipe
- ASTM A252 Grade 2 steel (or approved equal)
- 7′ sections with continuous sections up to 20′ optional
- Internal mechanical couplers for concentric butt-joint splicing
- Welded splices or longer solid sections recommended in weak or loose soils
FMPP100 Pipe Pile System Installation Method

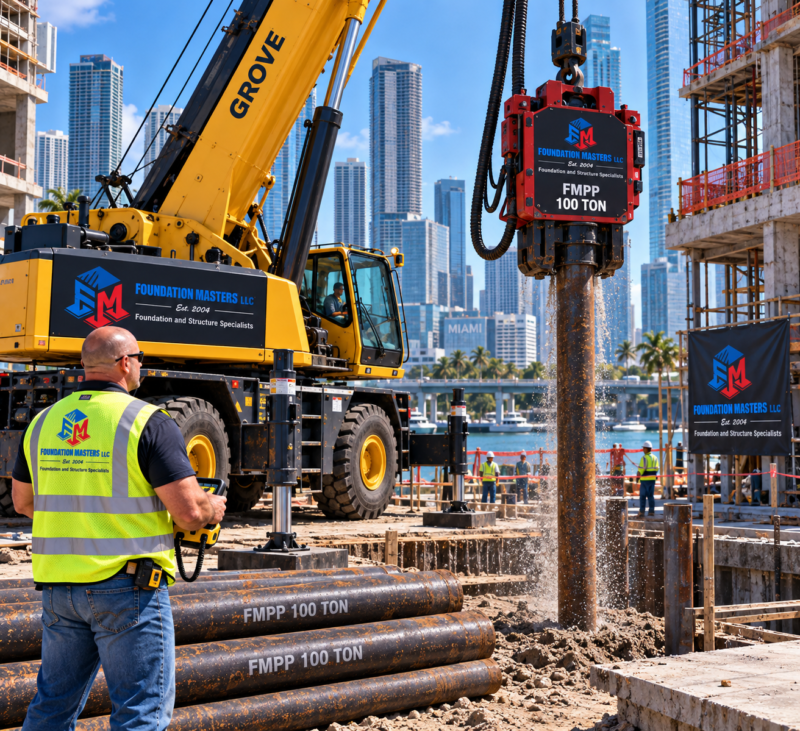

The FMPP100 Pipe Pile System uses a controlled two-stage driving sequence for installation and engineer verification.
Stage 1: Pneumatic hammer for initial advancement while monitoring resistance buildup.
Stage 2: Drop hammer to final refusal for precise capacity verification per engineer-defined blow-count criteria.
When specified, additional monitoring such as vibration monitoring can be included in the contract.
FMPP100 Pipe Pile System Design Criteria
FMPP100 Steel Capacity and Section Properties
FMPP100 Burst Pressure and Bend Strength
Grade Beam Reinforcement Detail for FMPP100 Installations
Reinforcement shown is representative. Final reinforcement shall be based on project-specific structural design.
Verified Load Capacity of the FMPP100 Pipe Pile System
The FMPP100 Pipe Pile System achieves engineer-verifiable load capacity through controlled drop hammer blow count and refusal criteria established in the project specifications. The FMPP100 Pipe Pile System is intended for major structural support applications where deterministic axial capacity, long-term settlement control, and installation verification are essential.
*Project-specific acceptance may require additional documentation, instrumentation, or testing as dictated by contract, jurisdiction, or the engineer of record.
Heavy Structural Applications for the FMPP100 Pipe Pile System
The FMPP100 Pipe Pile System is designed for the most demanding structural support conditions, including heavily loaded foundations, large structural underpinning programs, industrial facilities, marine-adjacent construction, major commercial projects, and other high-load applications where a 100-ton driven steel pile system is required.
Technical References
- FHWA — Design and Construction of Driven Pile Foundations
- ASTM A252/A252M — Welded and Seamless Steel Pipe Piles
- AISC — Steel Construction Manual
- OSHA — Pile Driving Equipment Requirements
Reference materials are provided for general technical context. Final design, installation criteria, and acceptance requirements must always be established by the project engineer and applicable contract documents.
