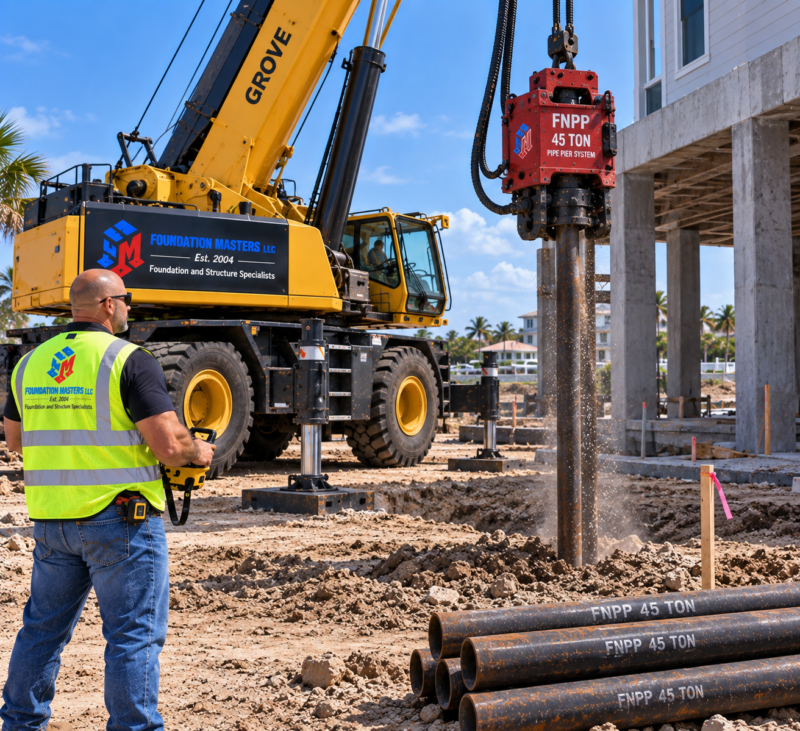

FMPP45 Pipe Pile System
The FMPP45 Pipe Pile System is a heavy-duty driven steel pile engineered for high axial capacity, verified refusal criteria, and reliable settlement control in demanding structural applications. This system is designed for projects where deep foundation performance, installation verification, and long-term stability are critical.
Florida’s Longest-Running Foundation Repair & Structural Engineering Firm
For more than 25 years, Foundation Masters has designed, engineered, and installed foundation repair, underpinning, deep foundation, waterproofing, and structural stabilization systems. As Florida’s longest-running foundation repair company under continuous ownership, Foundation Masters continues to provide engineered solutions backed by decades of field experience, documented project performance, and proprietary foundation systems developed specifically for Florida conditions.
Engineer Design Reference
Quick index of Foundation Masters pile systems for specification review and design coordination. Use this selector to compare capacities, installation methods, and acceptance criteria across the product line.
Verified Load Capacity of the FMPP45 Pipe Pile System
FMPP45 Pipe Pile System capacity is established by engineer-defined refusal criteria using a controlled driving sequence. The FMPP45 Pipe Pile System is intended for projects requiring high axial capacity, dependable settlement control, and installation verification through monitored driving resistance.
*Always follow project-specific geotechnical recommendations and engineering criteria.
FMPP45 Pipe Pile System Material Specifications
Steel Pipe Pile
- 4.5″ O.D. Schedule 40 steel pipe
- ASTM A252 Grade 2 steel (or approved equal)
- 7′ sections (typ.)
- Internal mechanical couplers for concentric butt-joint splicing
- Welded splices or longer solid sections recommended in weak or loose soils
Installation Method
The FMPP45 Pipe Pile System uses a controlled two-stage driving sequence for installation and acceptance.
Stage 1: Pneumatic hammer for initial advancement while monitoring resistance buildup.
Stage 2: Drop hammer to final refusal for precise capacity verification per engineer-defined blow-count criteria.
When specified, vibration monitoring can be included in the contract.
FMPP45 Pipe Pile System Design Criteria
FMPP45 Steel Capacity and Section Properties
*Section values shown are representative. Final project acceptance is governed by the engineer of record and site-specific design criteria.
FMPP45 Steel Pressure and Bend Strength
Grade Beam Reinforcement Detail for FMPP45 Installations
Reinforcement shown is representative. Final reinforcement shall be based on project-specific structural design.
FMPP45 Pipe Pile Installation Notes
- Pipe piles are typically installed by pneumatic hammer in 7′ sections using internal couplers.
- Up to 30′ solid welded pipe sections may be used in weak or loose soils where project conditions warrant.
- The FMPP45 Pipe Pile System is installed to engineer-required refusal criteria with verified driving resistance.
- This driven pile system is intended for heavy structural support applications where settlement control and axial load performance are critical.
Heavy Structural Applications
The FMPP45 Pipe Pile System is suited for demanding structural work where higher working loads, deeper support, and dependable refusal verification are required. Common applications include heavily loaded foundations, structural underpinning, commercial support systems, industrial structures, and projects involving difficult access or challenging subsurface conditions.
Technical References
- FHWA — Design and Construction of Driven Pile Foundations
- ASTM A252/A252M — Welded and Seamless Steel Pipe Piles
- AISC — Steel Construction Manual
- OSHA — Pile Driving Equipment Requirements
Reference materials are provided for general technical context. Final design, installation criteria, and acceptance requirements must always be established by the project engineer and applicable contract documents.
