Pipe Piles in Florida — FM-PP30 Deep Foundation Systems
Foundation Masters LLC is a Florida engineering and deep foundation company specializing in pipe pile design, manufacturing, engineering, and installation throughout Florida.
Pipe piles are deep foundation elements designed to transfer structural loads into competent bearing strata beneath weak surface soils. These systems are commonly used for residential homes, commercial buildings, industrial facilities, bridges, seawalls, retaining structures, and waterfront construction projects where shallow foundations are not suitable.
Foundation Masters designs and manufactures proprietary deep foundation systems including the FM-PP30 Pipe Pile, engineered specifically for Florida’s difficult soils, high groundwater conditions, and coastal environments.
Explore deep foundation systems
What Are Pipe Piles?
Pipe piles are hollow steel foundation members driven, drilled, or advanced into the ground until competent bearing soils or rock formations are reached.
Structural loads are transferred through:
- Skin friction along the shaft
- End bearing at the pile tip
- Combined load transfer mechanisms
Depending on the project requirements, pipe piles may be filled with structural concrete to increase compression strength, reduce corrosion exposure, and improve long term durability.
Pipe piles are commonly used in:
- Residential foundation construction
- Commercial and industrial projects
- Bridge and marine construction
- Seawall stabilization
- Waterfront foundations
- Settlement remediation projects
- Heavy structural loading conditions
Foundation Masters introduced residential pipe pile systems into Florida residential construction markets in 2012.

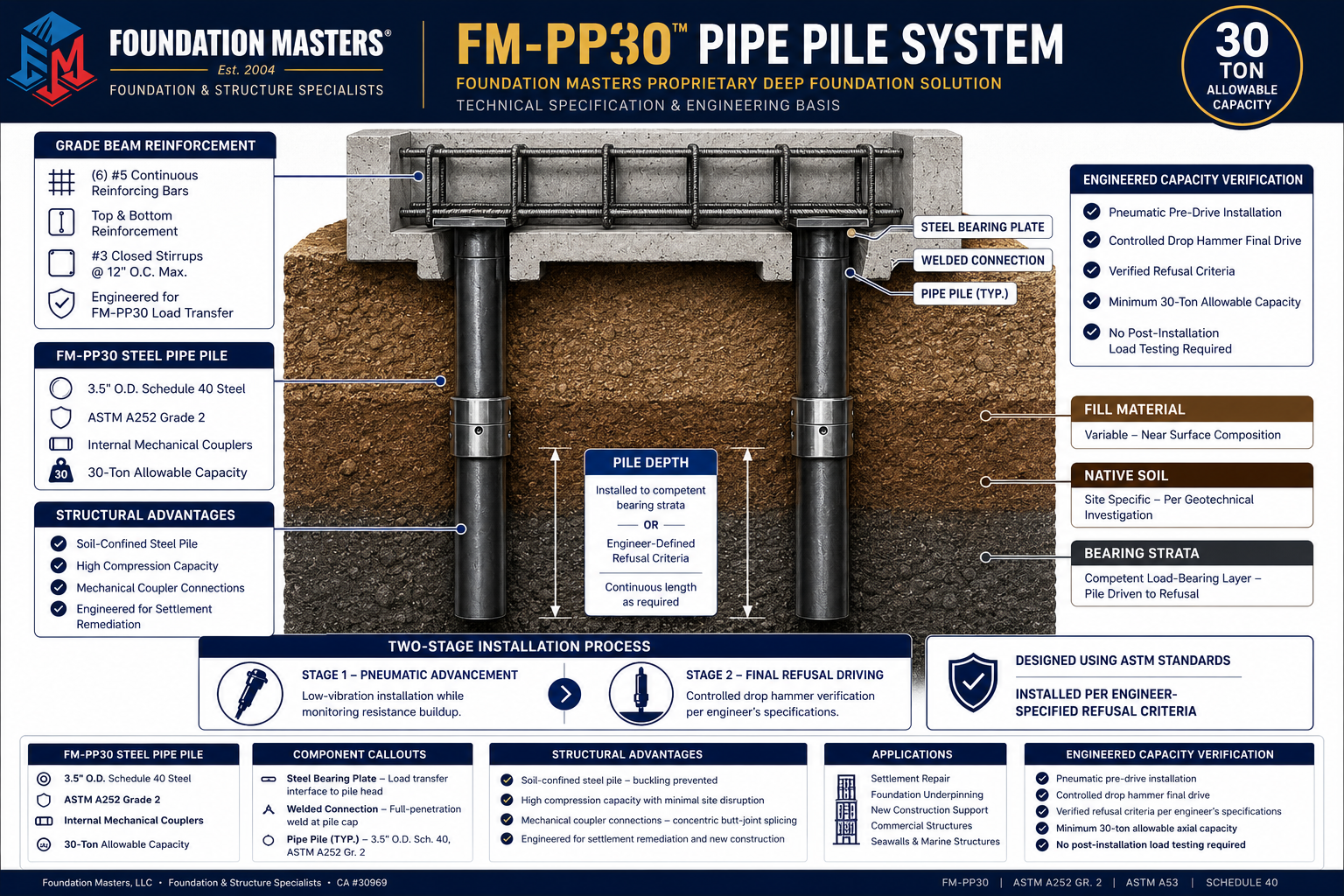

FM-PP30 Pipe Pile System
The FM-PP30 Pipe Pile is Foundation Masters’ proprietary residential and light commercial pipe pile system engineered for Florida construction.
- Pipe: 3½ inch Schedule 40 steel pipe
- Top Plate: 12 inch × 12 inch × ½ inch steel plate
- Ultimate Compression Strength: 40 tons
- Working Load Capacity: 30 tons
- Applications: residential foundations, additions, waterfront structures, and light commercial construction
- Warranty: transferable lifetime warranty available on qualifying projects
The FM-PP30 was developed specifically for Florida’s variable geotechnical conditions including loose sands, high groundwater, coastal exposure, and settlement prone soils.
Learn more about steel pipe specifications
Pipe Pile Engineering and Structural Capacity
Pipe pile systems must be engineered based on the actual soil conditions, structural loads, groundwater conditions, and long term performance requirements of the structure.
Foundation Masters evaluates:
- Axial compression loading
- Lateral loading conditions
- Soil bearing resistance
- Settlement potential
- Groundwater exposure
- Corrosion considerations
- Coastal and flood zone requirements
- Structural load transfer mechanisms
Pipe pile capacity is commonly evaluated using both shaft resistance and end bearing resistance.
Qult = Qs + Qb
- Qult = ultimate pile capacity
- Qs = shaft skin friction resistance
- Qb = end bearing resistance
Allowable design capacity is then determined using engineering safety factors and site specific geotechnical analysis.
Proven High Strength Performance
Foundation Masters has engineered and installed custom deep foundation systems for some of the most demanding structural projects in Florida.
One custom railroad bridge abutment push pier system designed and installed by Foundation Masters achieved:
- Ultimate Compression Strength: 100 tons
- Working Load Capacity: 60 tons
This demonstrates Foundation Masters’ ability to engineer and manufacture deep foundation systems ranging from residential support systems to heavy industrial and infrastructure applications.

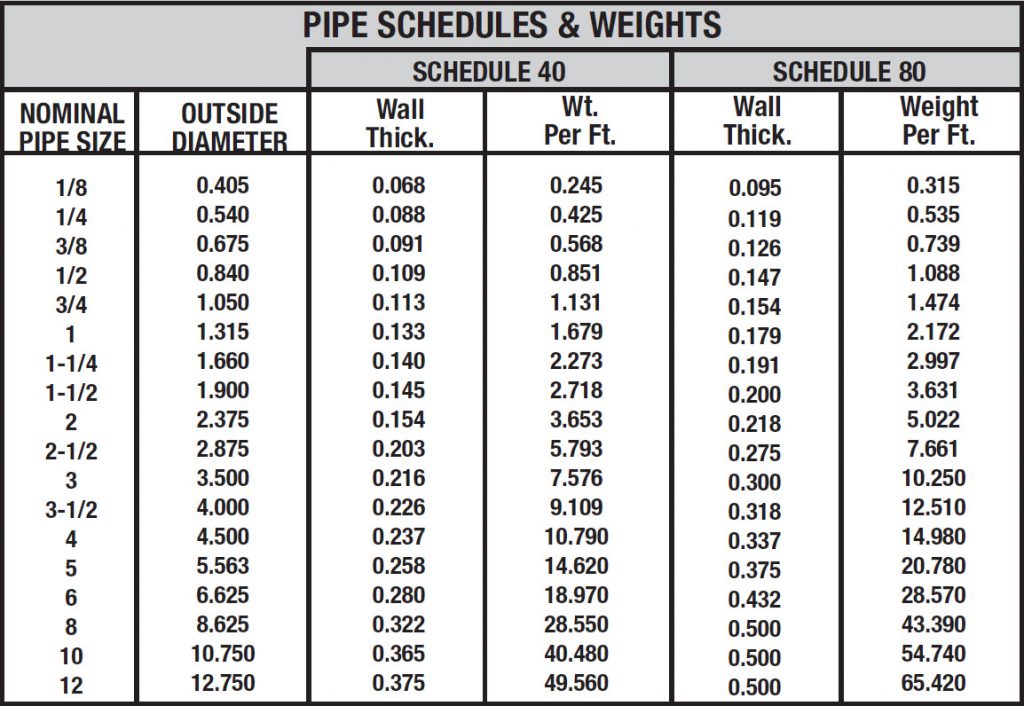

Pipe Pile Sizes and Installation Methods
Pipe pile systems are highly versatile and can be adapted for a wide range of structural applications.
- Diameter Range: approximately 2-7/8 inches to several feet
- Length: sections may be spliced to achieve significant depths
- Installation Methods: driven, drilled, augered, or vibratory installation
- Concrete Fill: used for increased strength and corrosion protection
The final installation method depends on the soil conditions, structural loading requirements, environmental exposure, and project access conditions.
Florida Soil Conditions and Deep Foundations
Florida’s geotechnical conditions vary significantly across the state and often require deep foundation systems to control settlement and improve structural performance.
Foundation Masters regularly evaluates:
- Loose sandy soils
- Organic and compressible materials
- High groundwater conditions
- Sinkhole susceptible geology
- Coastal and marine soils
- Clay and silty layers
- Settlement prone fill materials
Depending on the project, geotechnical investigations and soil borings may be recommended before foundation construction begins.
Explore geotechnical engineering services
Applications for Pipe Pile Systems
Foundation Masters installs pipe pile systems for:
- Residential foundations
- Luxury waterfront homes
- Commercial buildings
- Industrial structures
- Bridge systems
- Seawalls and retaining walls
- Marine and coastal projects
- Settlement remediation and underpinning
Every project is engineered based on the structure, site conditions, soil profile, and long term performance requirements.
Frequently Asked Questions About Pipe Piles
What is the FM-PP30 pipe pile system?
The FM-PP30 is Foundation Masters’ proprietary 30 ton residential and light commercial pipe pile system using 3½ inch Schedule 40 steel pipe and engineered structural connections.
When should pipe piles be used?
Pipe piles are typically used when shallow soils cannot safely support structural loads or when settlement control and deep support systems are required.
Do you manufacture your own pile systems?
Yes. Foundation Masters designs and manufactures its own proprietary deep foundation systems in house for quality control and engineering oversight.
Can pipe piles be used for residential and industrial projects?
Yes. Pipe piles are commonly used for residential homes, commercial structures, heavy industrial projects, bridges, marine construction, and infrastructure applications.
Related Foundation and Engineering Services
Deep foundation systems

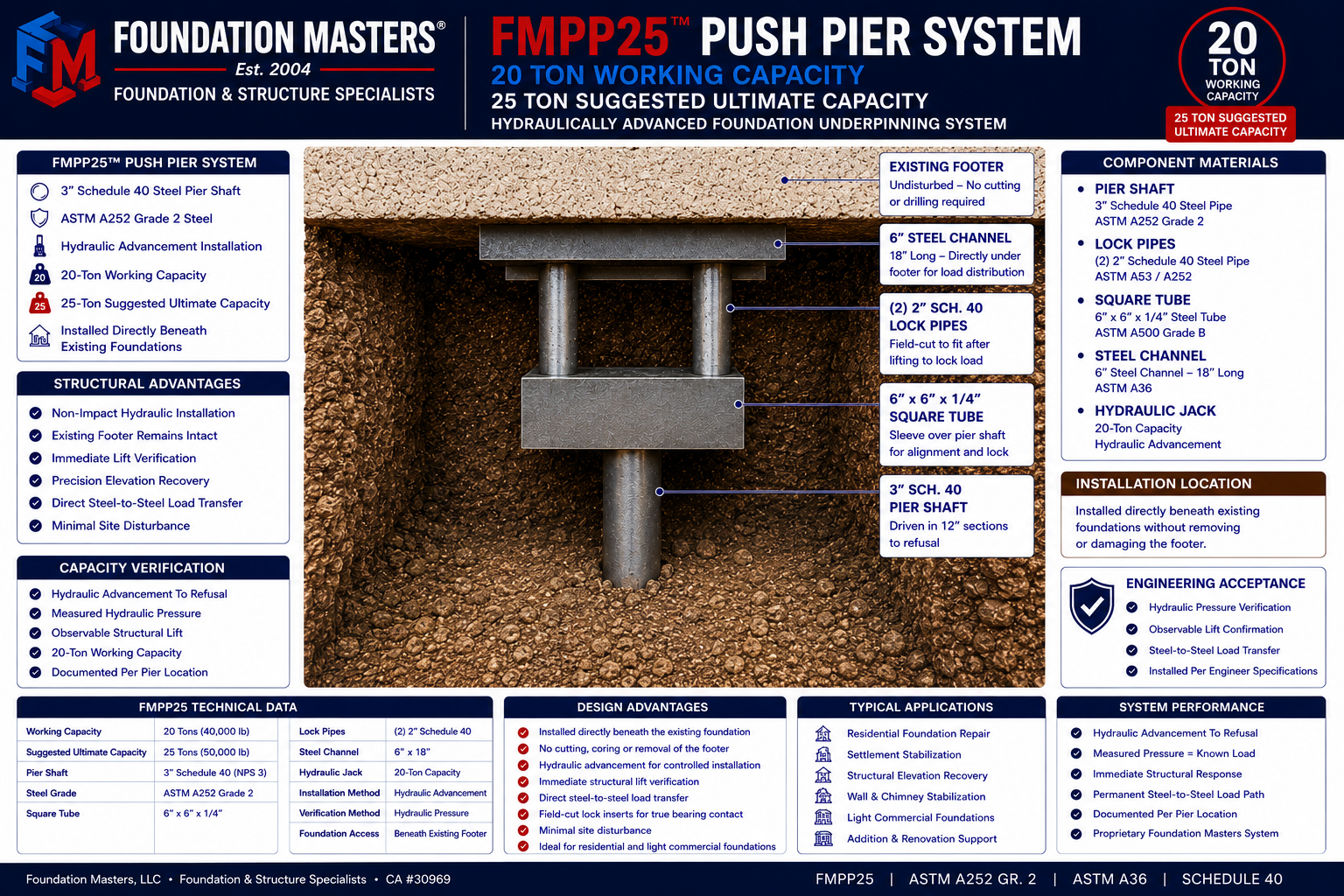

Push pier systems
